Function Module

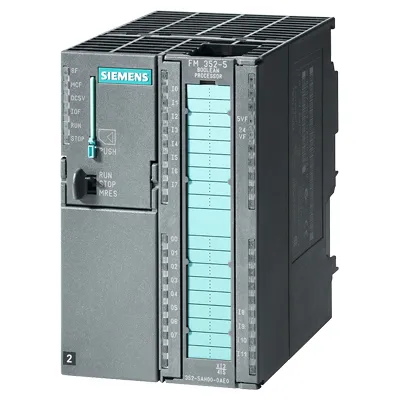

FM 352-5 High speed Boolean processor

• FM 352-5 High speed Boolean processor for fast binary control and fastest switching processing (cycle: 1 ms)
• Can be programmed with LAD or FBD

The instruction set includes bit instructions (part of STEP 7's instruction set), timers, counters, dividers, frequency generators, and shift registers

• 12 integrated digital inputs /8 digital outputs
• 2 models: source current or drain current digital output
• 1 channel for connecting a 24 V incremental encoder, a 5 V incremental encoder (RS422) or an SSI absolute encoder

FM 352-5 requires a micro memory card to run

FM 357-2 Positioning module

Path and positioning control for intelligent motion control up to 4 axes

• A wide range of applications, from independent single-axis positioning to multi-axis interpolation path control
• Used to control stepper motors and servo motors
• Convenient parameter setting tool, easy debugging
• Equipped with SIMODRIVE 611U and MASTERDRIVES MC PROFIBUS connections

Port (not applicable to combination of F M 357-2H and HT6)

FM 355 Controller module

• 4-channel closed-loop control module, which can meet common control tasks
• Can be used for temperature, pressure, flow and level control
• User-friendly online adaptive temperature control
• Predefined controller structure
• 2 control algorithms
• 2 models: -FM 355C continuous action controller; -FM 355 S Step or pulse controller
• 4 analog outputs (FM 355 C) or 8 digital outputs (FM 355 S) for direct control of universal actuators
• Continuous control in case of CPU downtime or failure
