Memory Card

SIMATIC S7， Memory card for S7-1x 00 CPU/SINAMICS.

If used in S7-1200 PLC, it can be used as a program card or transfer card to collect data log files or perform firmware updates.
1. Copy the project to multiple CPUs using a transfer card, and after copying the program to the CPUs, the transfer card must be removed.
2. Program cards can replace CPU memory; All CPU functions are controlled by this program card.
3. You can also use the program card to collect data log files.
4. Users can also use memory cards to perform firmware updates.

Details

Tags

If used as program memory in S7-1500PLC. SIMATIC memory cards mainly have the following functions:
1. As the loading storage area of the CPU, the CPU cannot run without the storage card.
2. Can be used to update firmware versions for S7-1500CPU and centralized IO modules.
3. Read service data.

Download

Download To PDF

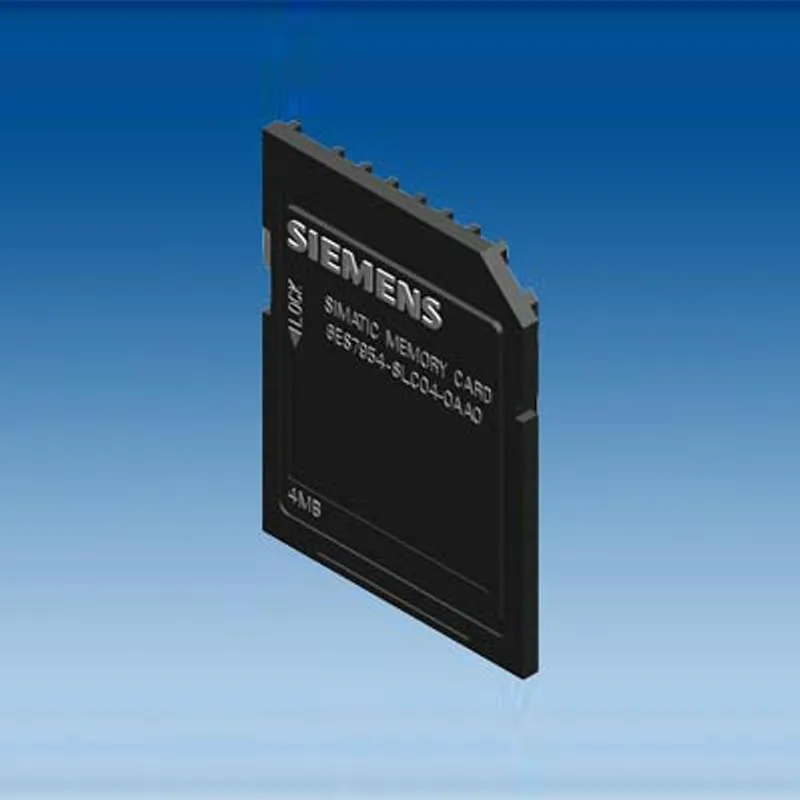

SIMATIC S7 Memory Card, 4 MB

View

SIMATIC S7 Memory Card, 12 MB

View

SIMATIC S7 Memory Card, 12 MB

View

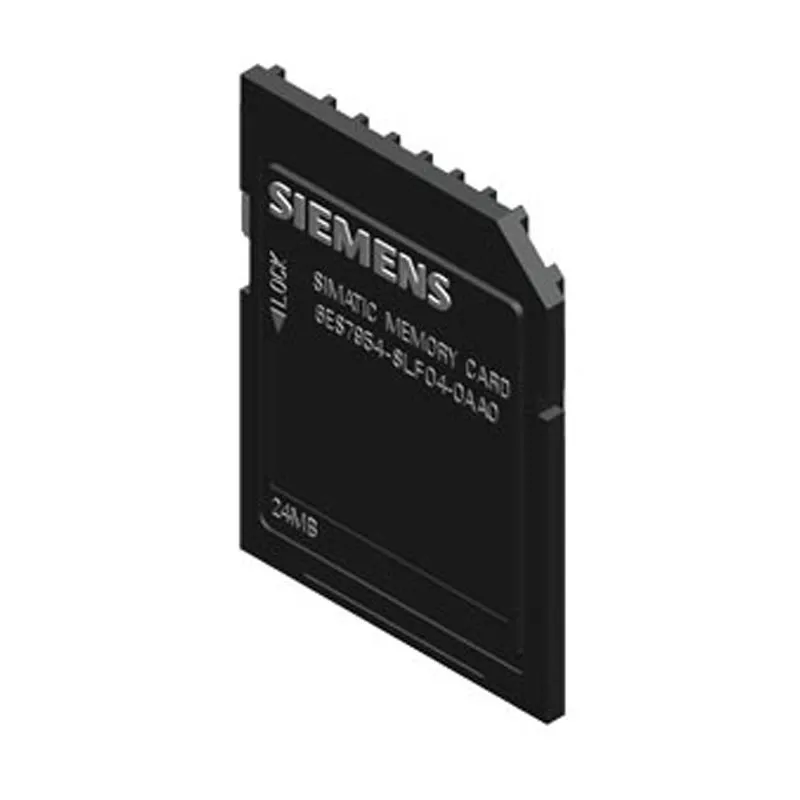

SIMATIC S7 Memory Card, 24 MB

View

SIMATIC S7 Memory Card, 24 MB

View
