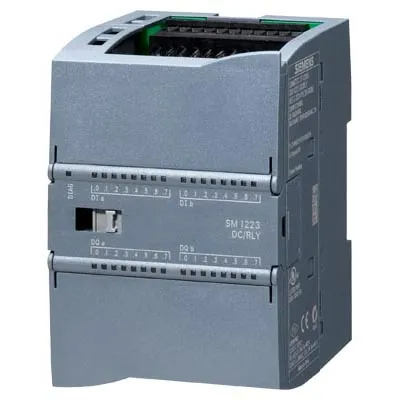

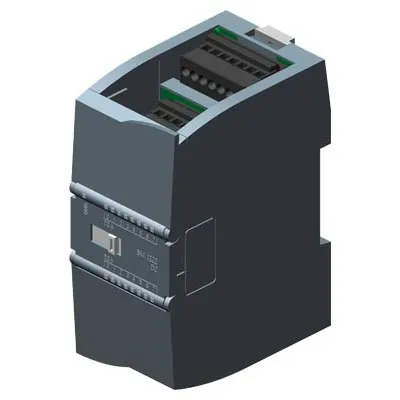

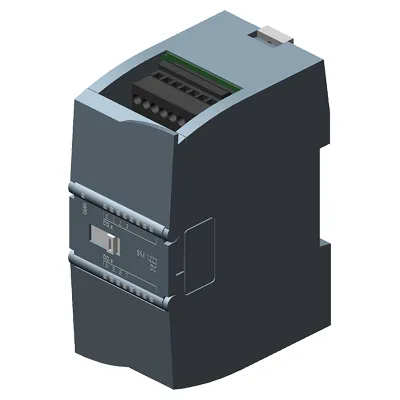

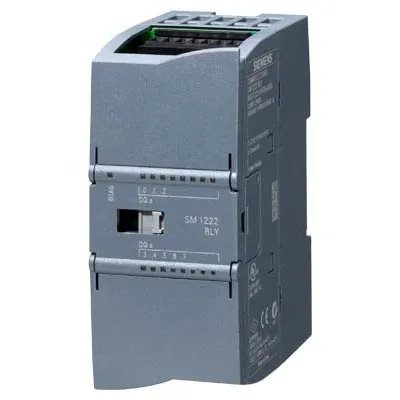

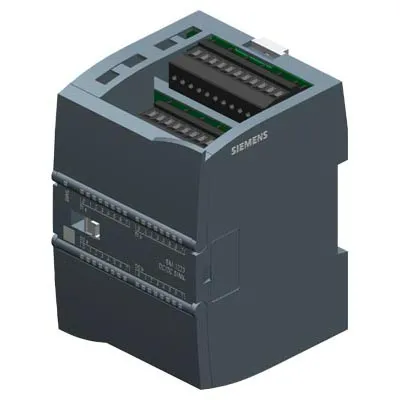

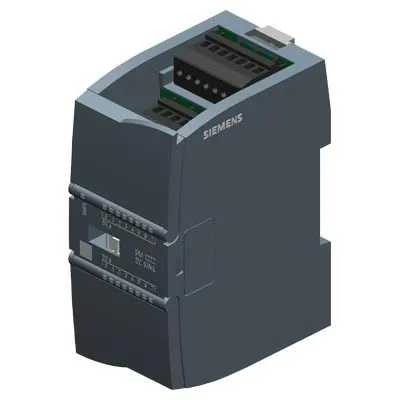

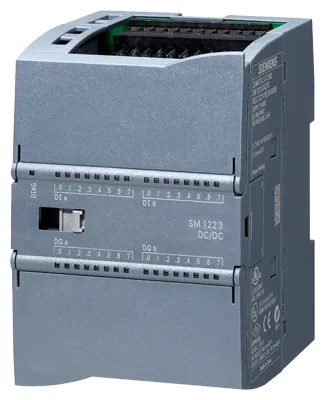

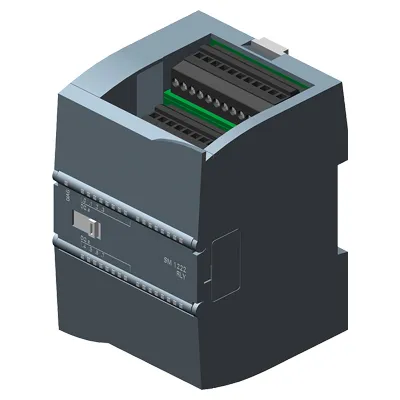

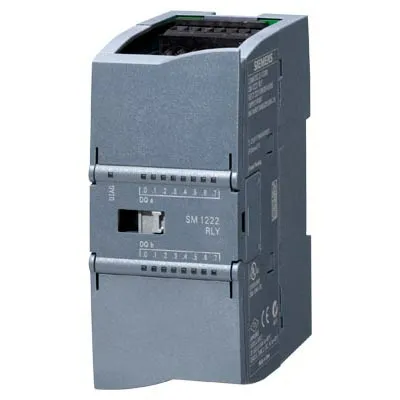

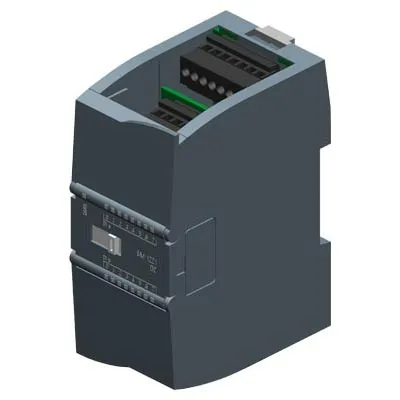

Digital Expansion Module

The controller can be flexibly adjusted according to the task to avoid unnecessary investment. Provides modules with 8, 16, and 32 input/output channels. Used for subsequent expansion of the system by adding inputs.

If the automation task needs to be expanded in the future, the controller can be expanded through these digital modules. In TIA Portal, it is very easy to update user programs.

This product line includes 12 different modules.

The S7-1200 digital module is an important extension of the S7-1200 PLC series design for processing digital signals (such as switching input/output).

1. 1.High reliability

• Digital volume module adopts industrial grade design, has high anti-interference ability and stability, and can operate reliably in harsh industrial environments for a long time.
•

2. 2.Flexible channel configuration

• The module supports multiple channel configurations (such as 8 channels and 16 channels). Users can select the number of input or output channels based on actual requirements, flexibly adapting to different application scenarios.
•

3. 3.Fast response time

• Digital module has fast signal processing capability, which can collect and output digital signals in real time to meet the control tasks with high real-time requirements.
•

4. 4.Easy to install and expand

• The compact design of the module allows easy installation and can be connected directly to the right side of the S7-1200 PLC without additional wiring. At the same time, it supports multi-module expansion to meet the needs of complex systems.
•

5. 5.Integrated diagnostic function

• The built-in diagnostic function of the module can monitor signal status in real time, detect disconnection, short circuit and other faults, and provide detailed diagnostic information through the TIA Portal software to facilitate quick troubleshooting.
•

6. 6.Multiple voltage levels are supported

• Supports input/output signals of various voltage levels (e.g. 24V DC, 120V AC, 230V AC) for different industrial equipment and control systems.
•

7. 7.Seamless integration with TIA Portal

• Through the TIA Portal software, users can easily configure, program and debug digital modules, support parametric Settings and online monitoring, and improve engineering efficiency.
•

1. 8.High cost performance
2. While ensuring high performance and reliability, digital volume modules are relatively affordable and suitable for small and medium-sized automation projects, reducing the total cost of ownership for users.

9. 9.Wide range of application scenarios

• Suitable for a variety of industrial fields, such as discrete manufacturing (sensor signal acquisition, actuator control), logistics automation (conveyor belt control, sorting system), building automation (lighting control, access control system), etc.
•

10. 10.Modular design

• Digital module adopts modular design, users can flexibly choose input module, output module or mixed module according to actual needs, optimize system configuration.
•

S7-1200 digital module with its high reliability, flexible configuration, fast response and powerful diagnostic function, has become an important tool for processing digital signals in industrial automation system. It not only simplifies the system design, but also improves the reliability and efficiency of the control, which is the ideal choice in the field of industrial control.
