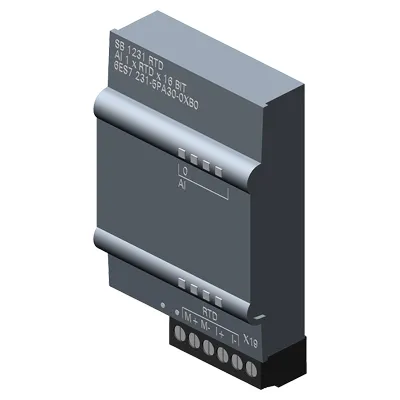

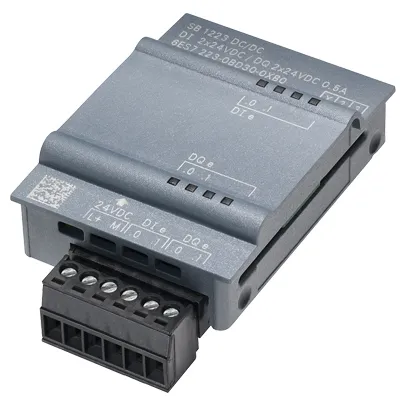

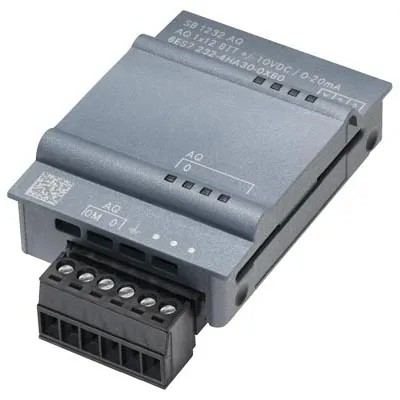

Modul Papan Isyarat

Signal Board

Setiap CPU S7-1200 boleh dikembangkan secara modular melalui papan isyarat.
Pengembangan ini tidak akan meningkatkan ruang pemasangan yang diperlukan untuk pengawal.
Barisan produk ini termasuk input digital, output digital, IO digital campuran, input analog dan output analog.

The S7-1200 Signal Board is a compact expansion module designed by Siemens for the S7-1200 PLC family that can be mounted directly on the PLC body for expanding digital or analog input/output points. Here are the advantages:

1. 1.Compact design, space saving

• The signal board module is installed directly on the front of the S7-1200 PLC body, which does not require additional control cabinet space, especially suitable for applications where space is limited.
•

2. 2.Expand flexibly

• Provide a variety of signal board types, including digital input/output, analog input/output and communication interface (such as RS485), users can flexibly choose according to actual needs, expand the function of PLC.
•

3. 3.Plug and play

• The signal board module is simple to install, no additional wiring is required, and can be used directly into the PLC body, reducing installation time and cost.
•

4. 4.High cost performance

• The price of signal board module is economical, suitable for application scenarios that require a small number of expansion points, avoiding the cost waste of purchasing large expansion modules.
•

5. 5.Seamless integration with TIA Portal

• Through the TIA Portal software, users can easily configure, program and debug the signal board module, support parametric setting and online monitoring, and improve engineering efficiency.
•

6. 6.Support multiple signal types

• The digital signal board supports 24V DC input/output, and the analog signal board supports voltage and current signals (such as 0-10V, 0-20mA) to meet diverse industrial needs.
•

7. 7.Fast response time

• The signal board module has fast signal processing capability, which can collect and output signals in real time, and meet the control tasks with high real-time requirements.
•

8. 8.High reliability

• The signal board module adopts industrial design, has good anti-interference ability and stability, and can operate reliably in harsh industrial environment for a long time.
•

9. 9.Simplify system design

• Through the signal board module, the user can flexibly expand the input/output points of the PLC without adding additional expansion modules, simplifying the system design and wiring.
•

10. 10.Wide range of application scenarios

• Suitable for a variety of industrial fields, such as small automation equipment, sensor signal acquisition, actuator control, process monitoring, etc.
•

The S7-1200 signal board module, with its compact design, flexible expansion, cost-effective and easy installation characteristics, is the ideal choice for expanding PLC functions in small automation systems. It not only saves space and costs, but also improves the flexibility and reliability of the system, and is a practical solution in the field of industrial control.
