Sports CPU

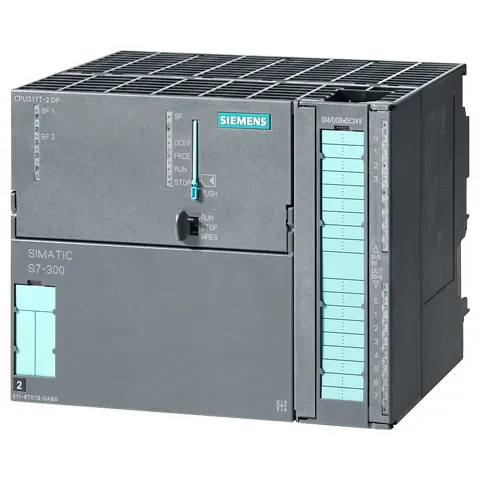

CPU 317T-2 DP

• SIMATIC CPU with integrated process/motion control
• Full functionality of standard CPU 317-2 DP
• For series machines, specialized machines, and cross-domain automation tasks in factories
• Ideal for synchronous motion, such as coupling to virtual/real master equipment, decelerator synchronization, CAM discs, path interpolation, or printed mark correction
• Three-dimensional path interpolation with different kinematics
• Position and pressure control hydraulic shaft
• Used as a centralized controller on production lines with centralized and distributed I/O
• Distributed intelligence in component-based automation via PROFIBUS DP
• Integrated I/O for high-speed process functions (e.g., CAM control, base point acquisition)
• PROFIBUS DP (DRIVE) interface, which is used to realize isochronous connection of drive components
• Control tasks and motion control tasks use the same S7 user program (motion control can be implemented without other programming languages)
• The S7-Technology option package is required

CPU running requires SIMATIC Micro memory card (8 MB)

CPU 317TF-2 DP

• Fail-safe SIMATIC CPU with integrated process/motion control
• Full functionality of standard CPU 317-2 DP and CPU 317F-2 DP
• For series machines, specialized machines, and cross-domain automation tasks in factories
• Ideal for synchronous motion, such as coupling to virtual/real master equipment, decelerator synchronization, CAM discs, path interpolation, or printed mark correction
• Three-dimensional path interpolation with different kinematics
• Used as a centralized controller on production lines with centralized and distributed I/O
• Distributed intelligence in component-based automation via PROFIBUSDP
• Integrated I/O for high-speed process functions (e.g., CAM control, reference point acquisition)
• PROFIBUS DP (DRIVE) interface, which is used to realize isochronous connection of drive components
• Control tasks and motion control tasks use the same S7 user program (motion control can be implemented without other programming languages)
• The S7-Technology option package is required
• The S7 Distributed Safety option package is required

CPU running requires SIMATIC Micro memory card (8 MB)
