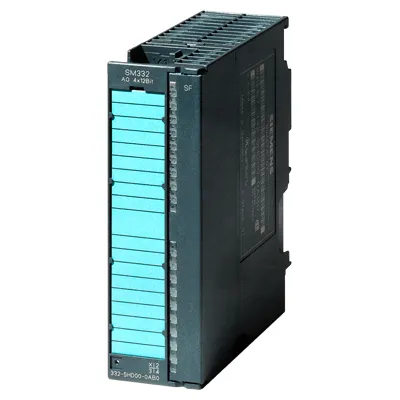

Controller S7-300 AQ

S7-300 analog output module is widely used in industrial automation field.

Its analog output module is used to convert digital signals processed by PLC into analog signals (such as voltage, current, etc.) to control external devices (such as frequency converters, regulating valves, etc.).

1. Signal type support:

o Support a variety of analog signal output, such as voltage (±10V, 0-10V, etc.) and current (0-20mA, 4-20mA, etc.).

The O-part module also supports other types of analog signal output.

2. Number of channels:

o modules typically offer 4, 8, or 2 analog output channels, depending on the model.

3. Resolution:

The resolution is usually 12 or 16 bits, which affects the accuracy of the signal output.

4. Electrical isolation:

o Most modules feature electrical isolation to prevent interference signals from affecting output accuracy.

5. Diagnostic function:

o Provide diagnostic functions, such as short-circuit detection, over-range alarm, etc., to facilitate troubleshooting.

6. Modular design:

o Modular structure is easy to expand and maintain, and users can flexibly configure according to requirements.

7. Communication interface:

o Through the backplane bus and CPU module communication, data transmission speed, strong real-time.
